Free circuit dot com would like to present the 12 to 40 V DC-DC convertor circuit,This circuit is continue one project that was posted already.
The high end 12 to 40 Voltage DC-DC converter able provide up to 40V from a 12V. source. The circuit can be used to run power amplifier or radios amplifier system, small lights, relays, horns and other 40V accessories from a 12V vehicle with a maximum draw of about 1600mA. The circuit can be used to charge one 12V battery from another, or step up the voltage just enough to provide necessary overhead for a 12V linear regulator.
The high end 12 to 40 Voltage DC-DC converter able provide up to 40V from a 12V. source. The circuit can be used to run power amplifier or radios amplifier system, small lights, relays, horns and other 40V accessories from a 12V vehicle with a maximum draw of about 1600mA. The circuit can be used to charge one 12V battery from another, or step up the voltage just enough to provide necessary overhead for a 12V linear regulator.
Take one IC op-amp as a squarewave oscillator to ring an inductor and another IC op-amp in a feedback loop, The circuit won’t drift around under varying loads, providing a stable 40Voltage source for many applications. With a wide adjustment in output this circuit has many uses.
We had completely PCB for this circuit already,Please click link for see in detail.
DC to DC 12 to 24-full circuit

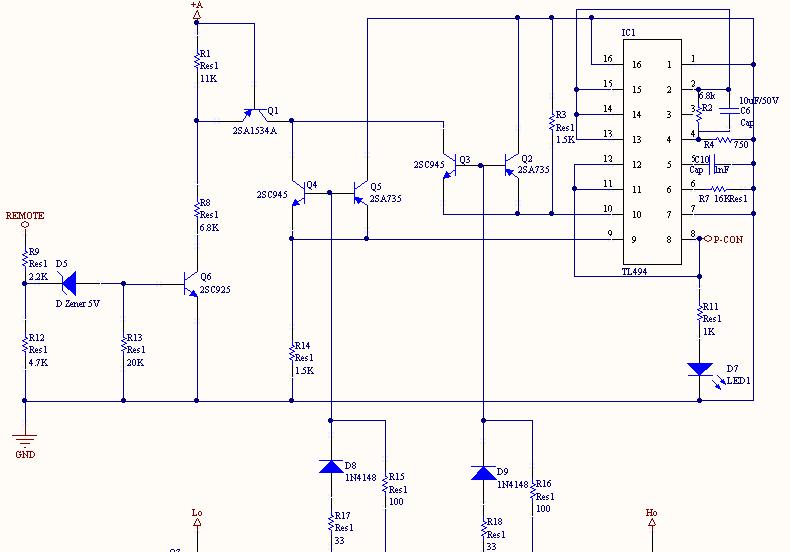

DC/DC 12 to 24 Sub Circuit Part1
DC/DC 12 to 24 Sub Circuit Part2
DC/DC 12 to 24 Sub Circuit Part3
Source - http://www.free-circuit.com
